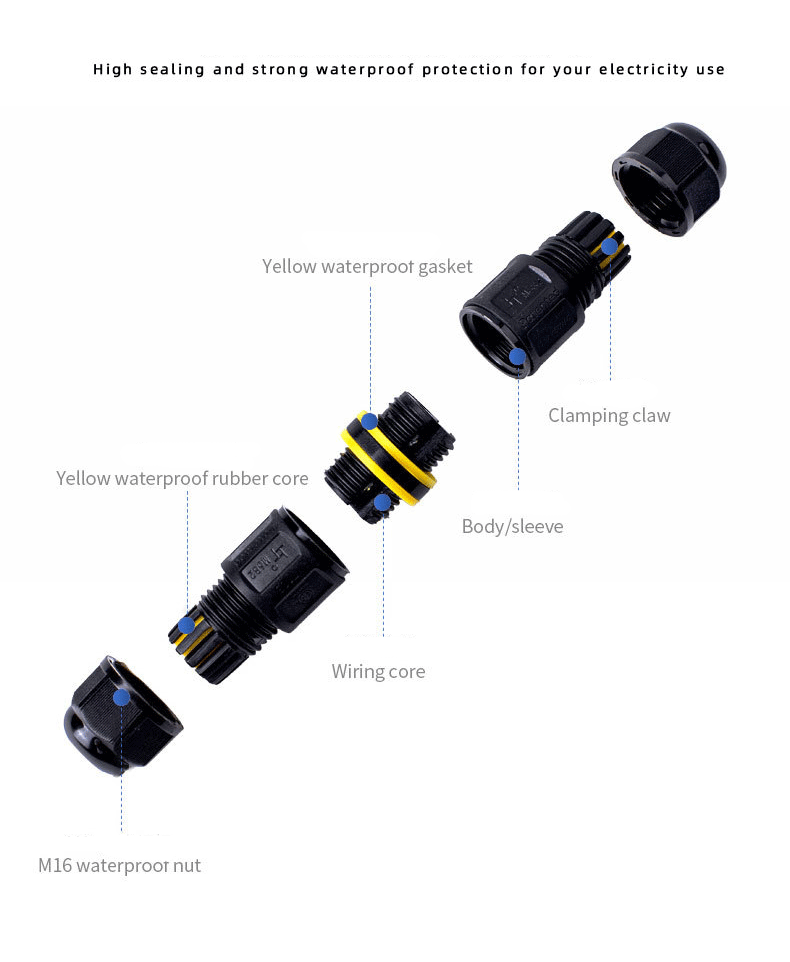

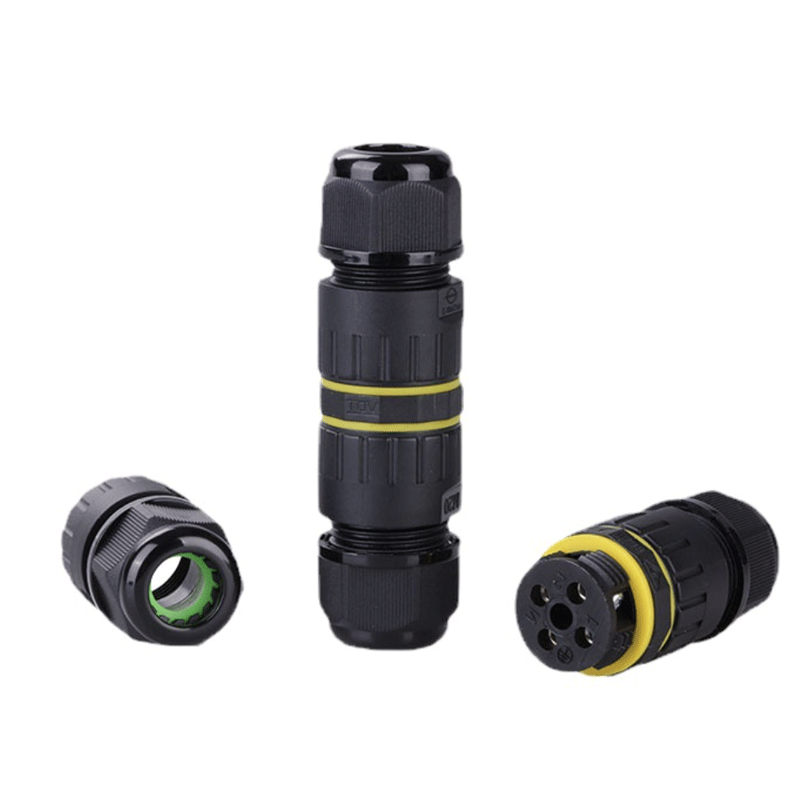

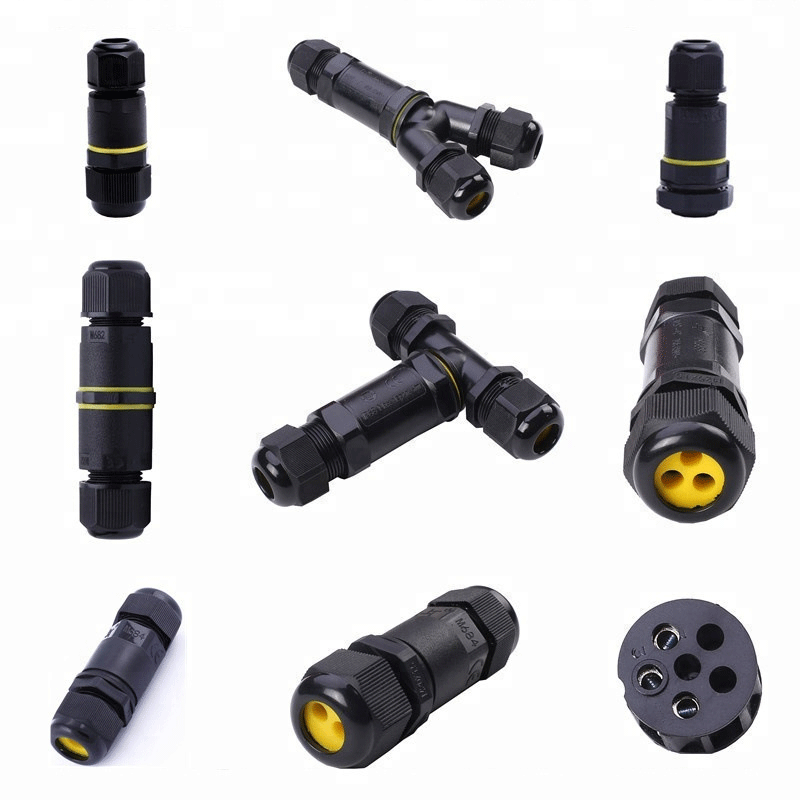

Cable joints are essential key components in cable systems, whose main function is to ensure the safety, reliable connection, and long-term stable operation of cables.
Characteristics
| Connector system | 14awg, 12awg, 10awg |
| Rated voltage | 1000V DC(IEC) |
| Rated current | 17A(1.5mm2), 22A(2.5mm2) 30A(4mm2, 6mm2) |
| Test volatge | 6kv (50HZ, 1min) |
| Ambient temperature range | -40℃….+90℃(IEC), -40℃….+75℃(UL) |
| Upper limiting temperature | +105℃(IEC) |
| Degree of protection | IP 67 |
| Umated | IP2X |
| Contact resistance of plug connectors | 0.5mΩ |
| Safety class | II |
| Contact material | tinned copper |
| Insulation material | PC |
| Locking system | Snap-in |
| Salt mist spray test,
degree of severity 5 |
IEC 60068-2-52 |
| Flame class | UL-94-VO |
Our Service(We can provide you with other fiber optic cable accessories that you need when using fiber optic cables)
